Force USA C20 Cornerstone All-In-One Trainer

Force USA C20 Cornerstone station detail

Force USA C20 integrated attachment storage

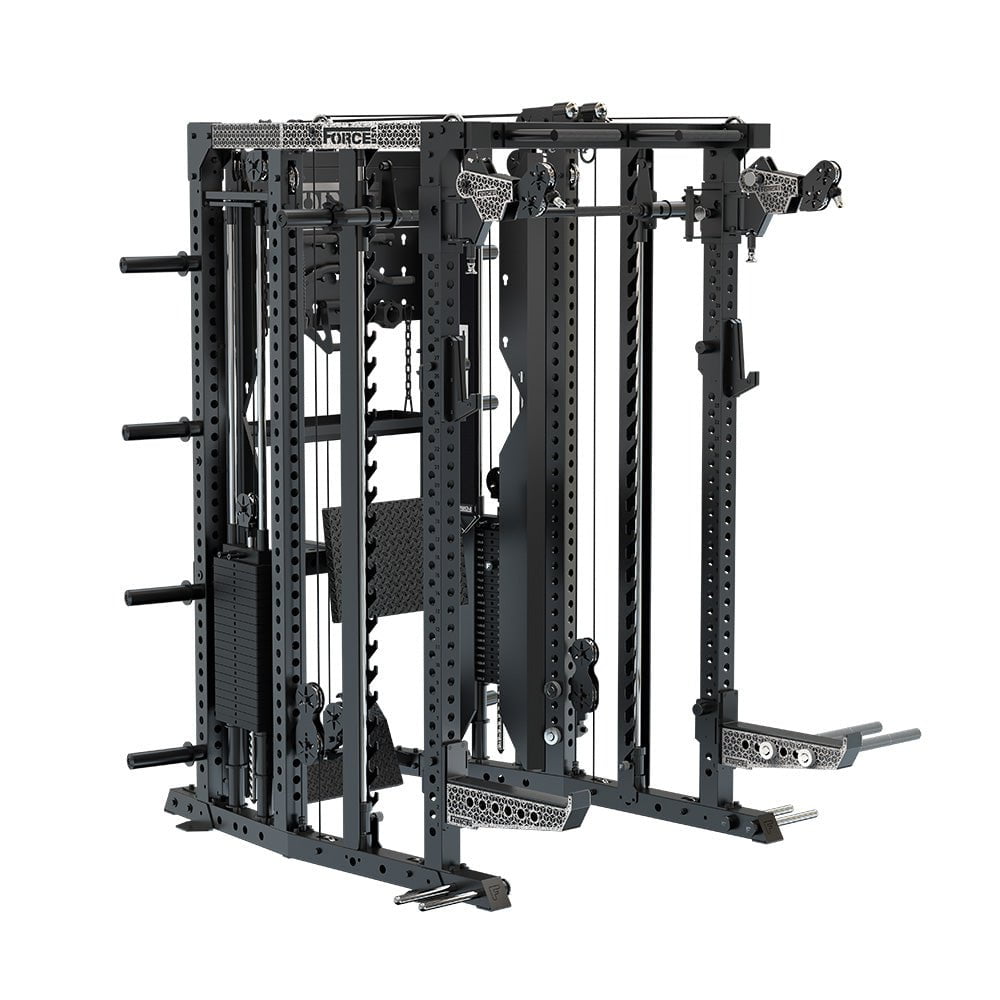

Force USA C20 Cornerstone All-In-One Trainer

Name: Force USA C20 Cornerstone All-In-One Trainer
Brand: Force USA
SKU: F-C20
Price: 7537.00 AUD
Availability: OutOfStock

Force USA

4.9 61 reviews on Force USA

Force USA's full-commercial flagship. Lat pulldown, low row, sliding bench and functional trainer stations in one 585kg frame.

$7,537.00

Sale Sold out

BUILT FOR THE LONG HAUL.

Full commercial rated 11-gauge frame
Dual 90.7kg stacks, upgradeable to 136kg
Freight delivered NZ-wide
585kg net, no bolting required

Lifetime warrantyon the frame

SEE THE DIFFERENCE

Powers the sliding bench

One bench, five stations

The patent-pending Sliding Bench combines five stations in one — leg press, hack squat, leg curl, leg extension and preacher curl — all cable-connected directly to the dual integrated weight stacks.

Run through the lower centre cable system it delivers up to 272kg (600lb) of resistance. No weight plates required.

The portable design stores upright against the wall, so you replace five dedicated machines without giving up any more floor space.

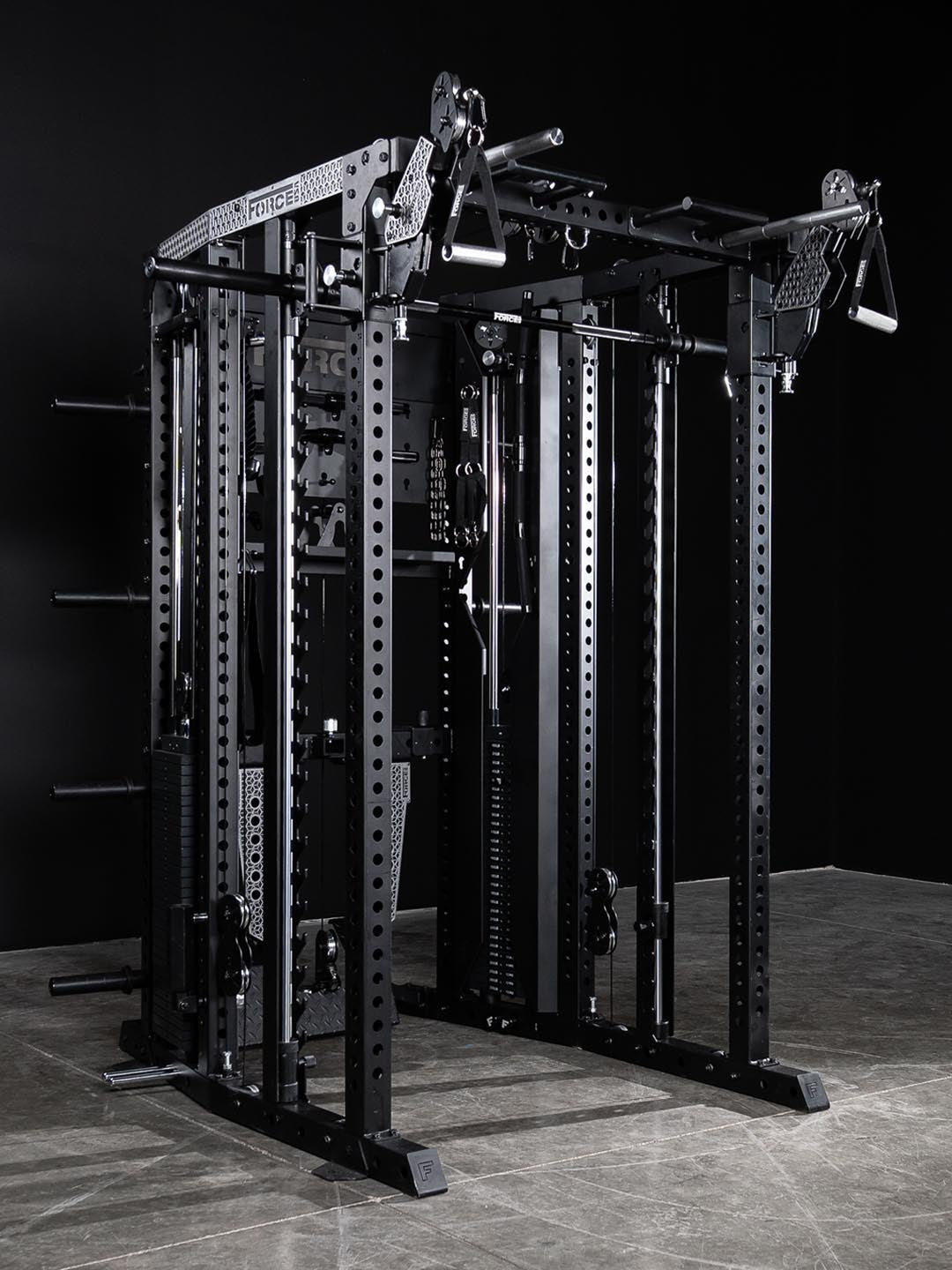

True 3x3 inch, 11-gauge uprights

The professional standard

The C20 is built on 11-gauge, true 3x3 inch uprights with 25mm holes at 51mm spacing, giving you open-source compatibility with the wider 3x3 ecosystem and third-party attachments.

Professional-standard rack widths — 124.5cm exterior and 109.2cm interior — with room to rerack comfortably and proper J-hook and spotter arm spacing.
Interior working depth supports a full range of incline and decline bench positions, low rows and the vertical lat pulldown.
The frame keeps continuous contact with the floor rather than sitting on pedestal feet, and self-adjusts to slightly uneven surfaces, which kills the wobble pedestal designs are prone to.

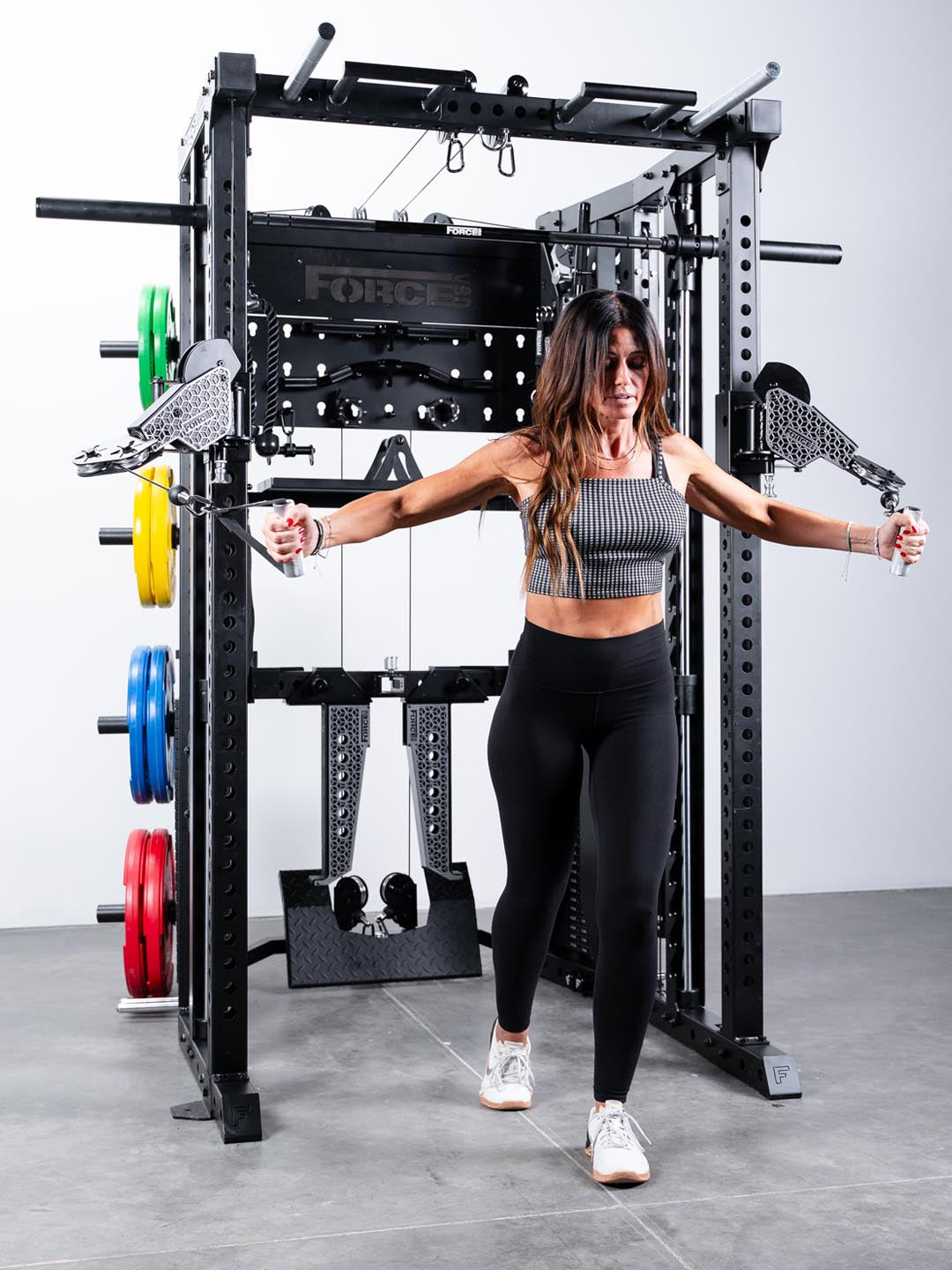

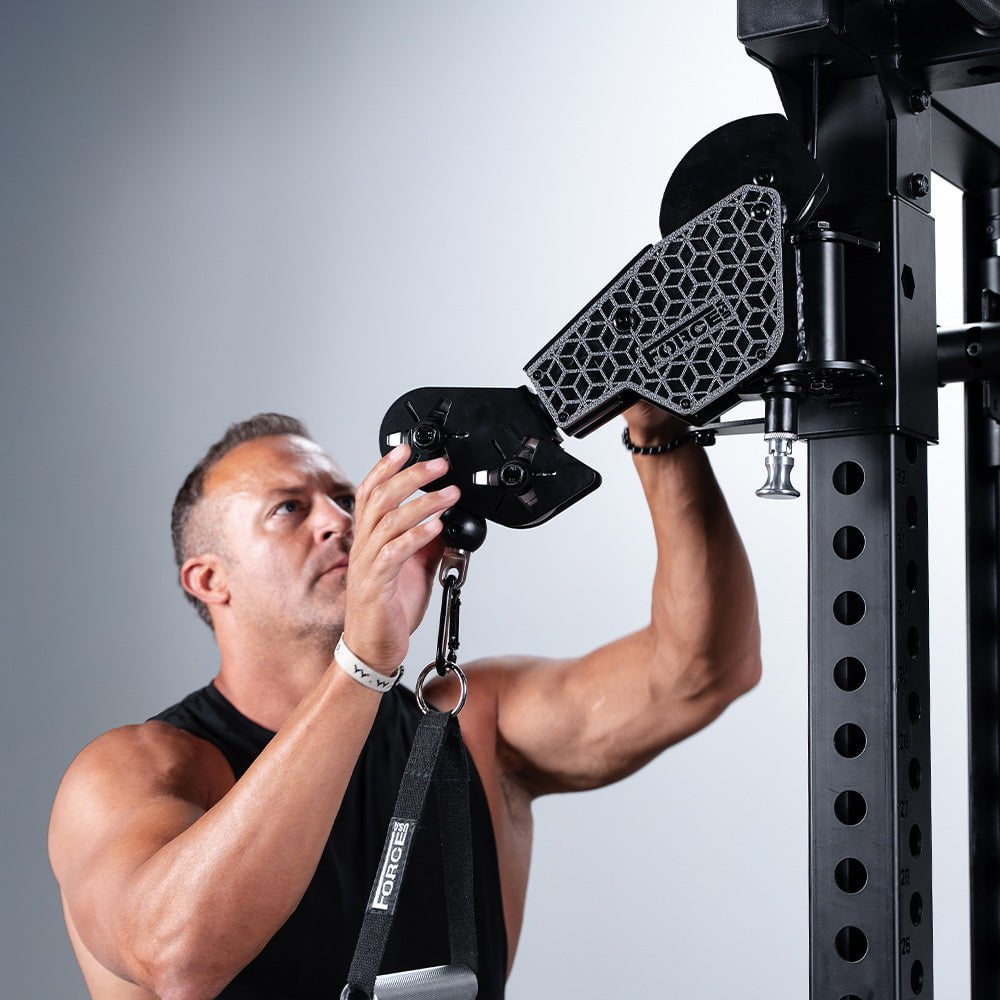

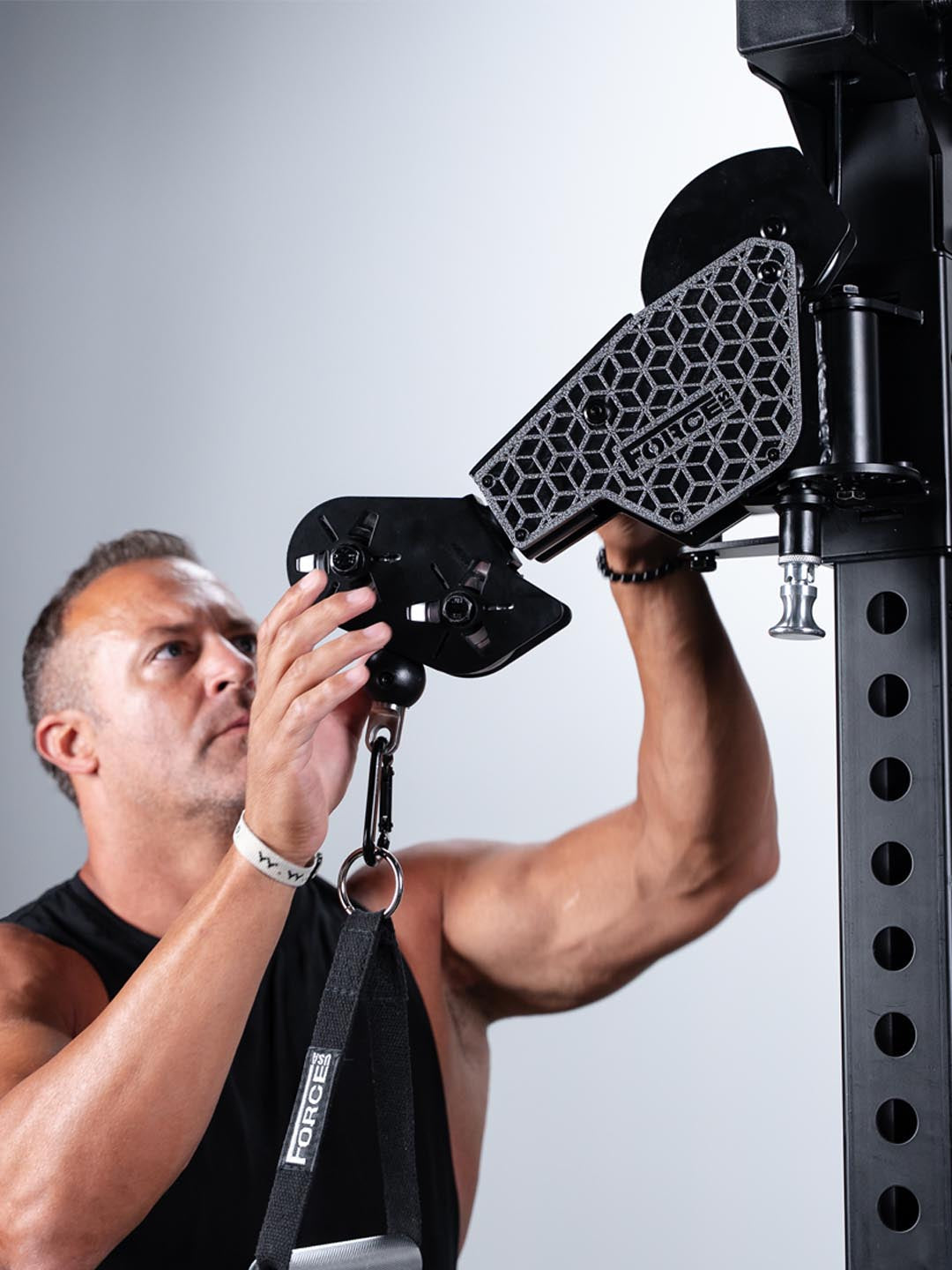

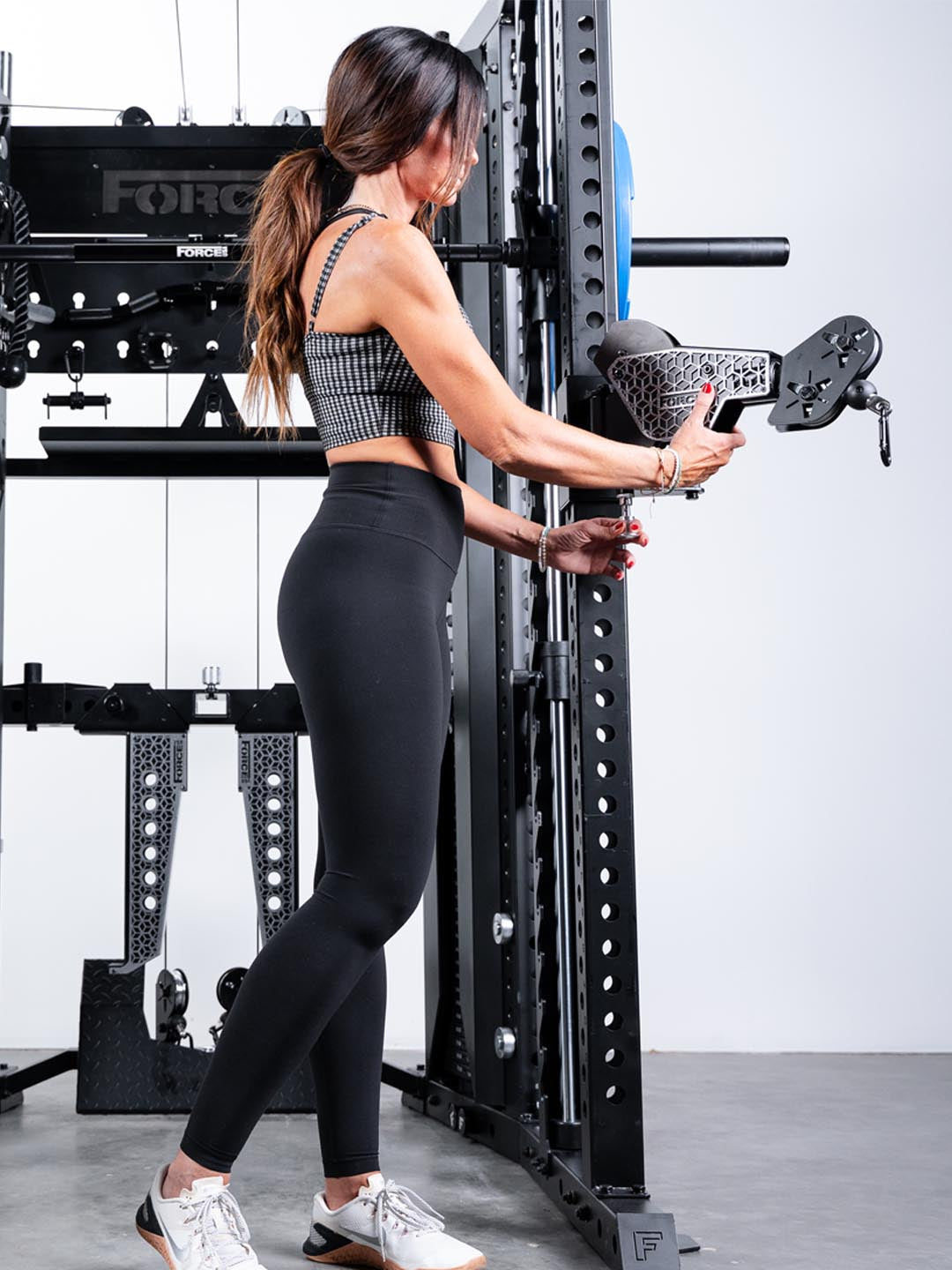

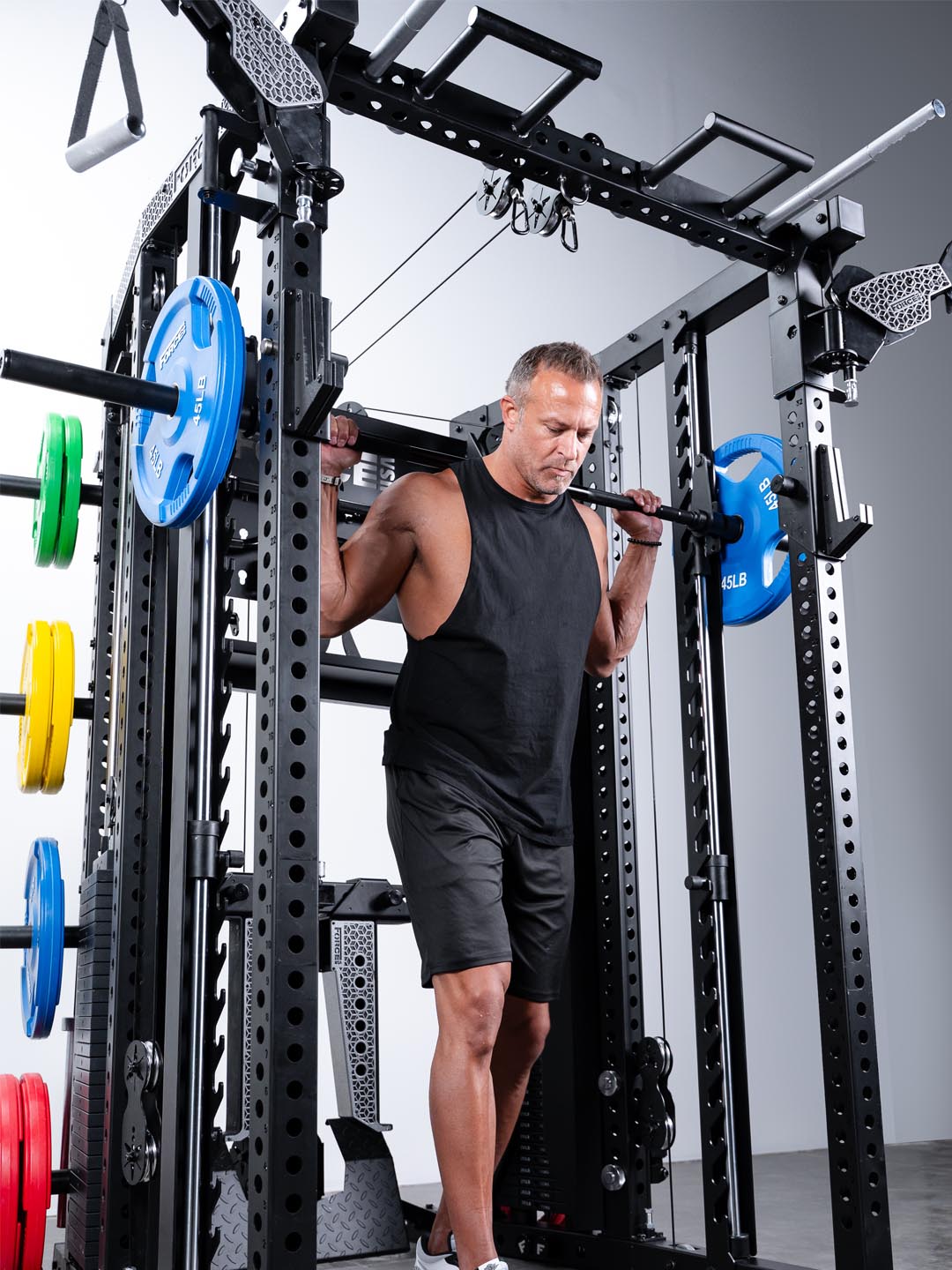

Freestyle pulley arms

Lock it down, or let it move

Hours of field testing produced arms at the right length — enough reach for real versatility without getting in the way.

Lock Mode fixes each arm in position for a rock-solid, zero-drift setup. Built for hypertrophy and heavy strength work where stability is non-negotiable, and for a consistent, predictable path of travel on rows, presses and lat pulldowns.
Flow Mode releases the arms so they track your body in real time through 180 degrees. Built for functional, explosive and rotational work, it removes the joint-drag of a fixed pulley so the resistance stays on the muscle.

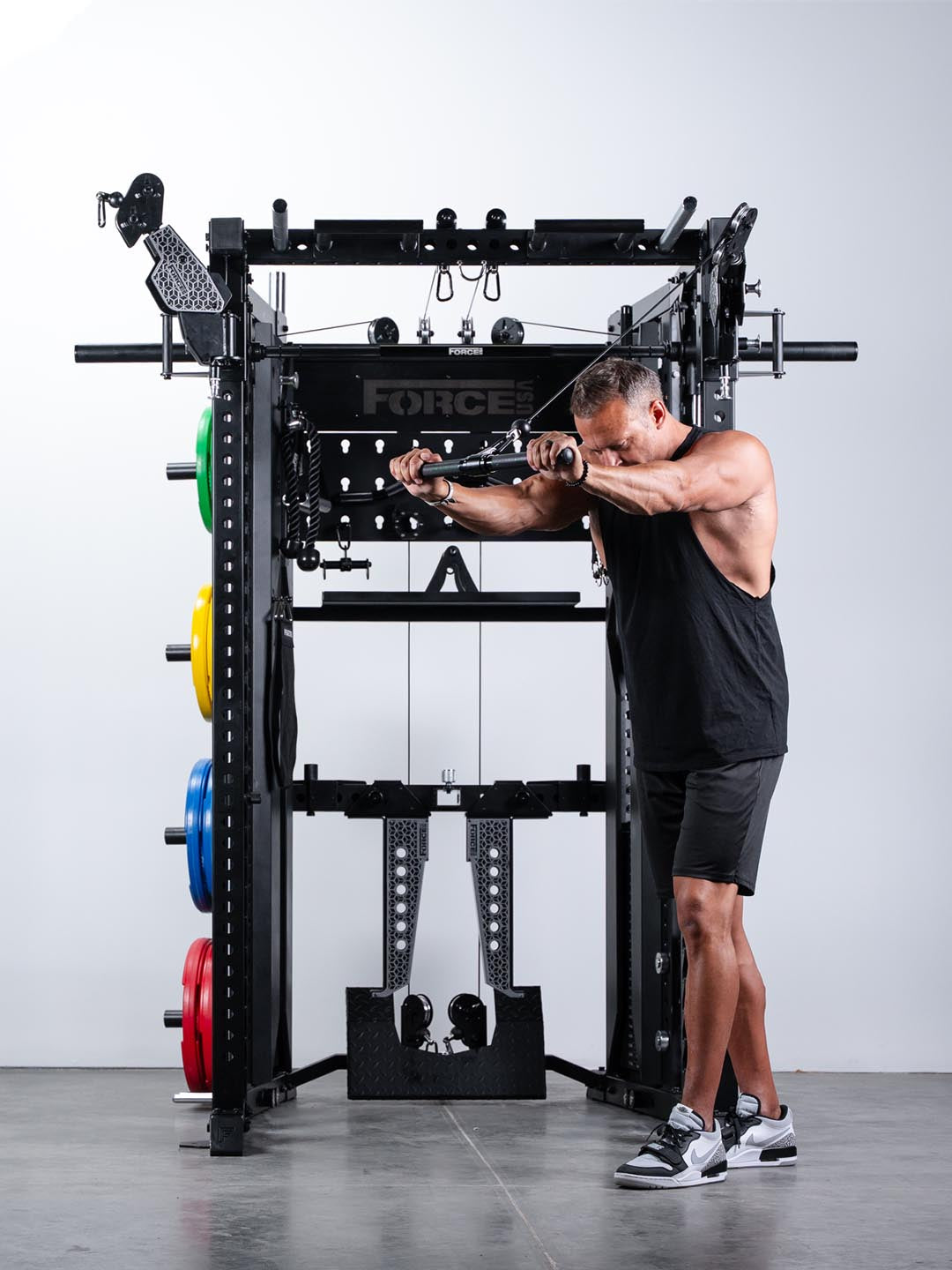

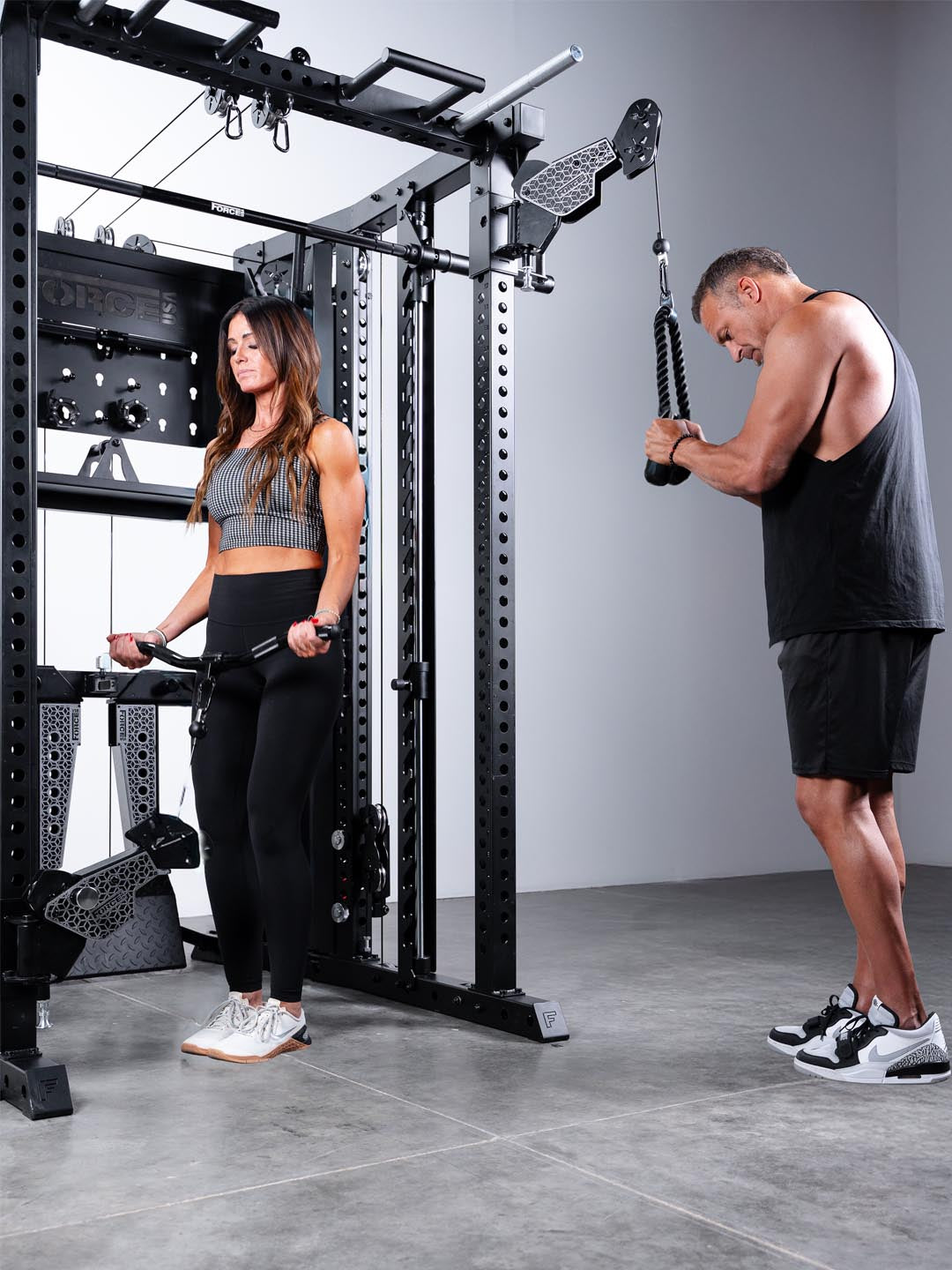

Six pulley connections

Every angle, without reconfiguring

Dual freestyle pulley arms plus a high and a low centre cable station give you six connections, so you can train every angle and every movement pattern without rebuilding the machine between exercises.

Bottom centre cables run 1:1 — 90kg loaded is 90kg at the handle — or connect them together to double the weight.
Top centre cables and the freestyle arms run 2:1, so 90kg loaded is 45kg at the handle.
Centre-connected cables deliver up to 272kg (600lb) of cable resistance.

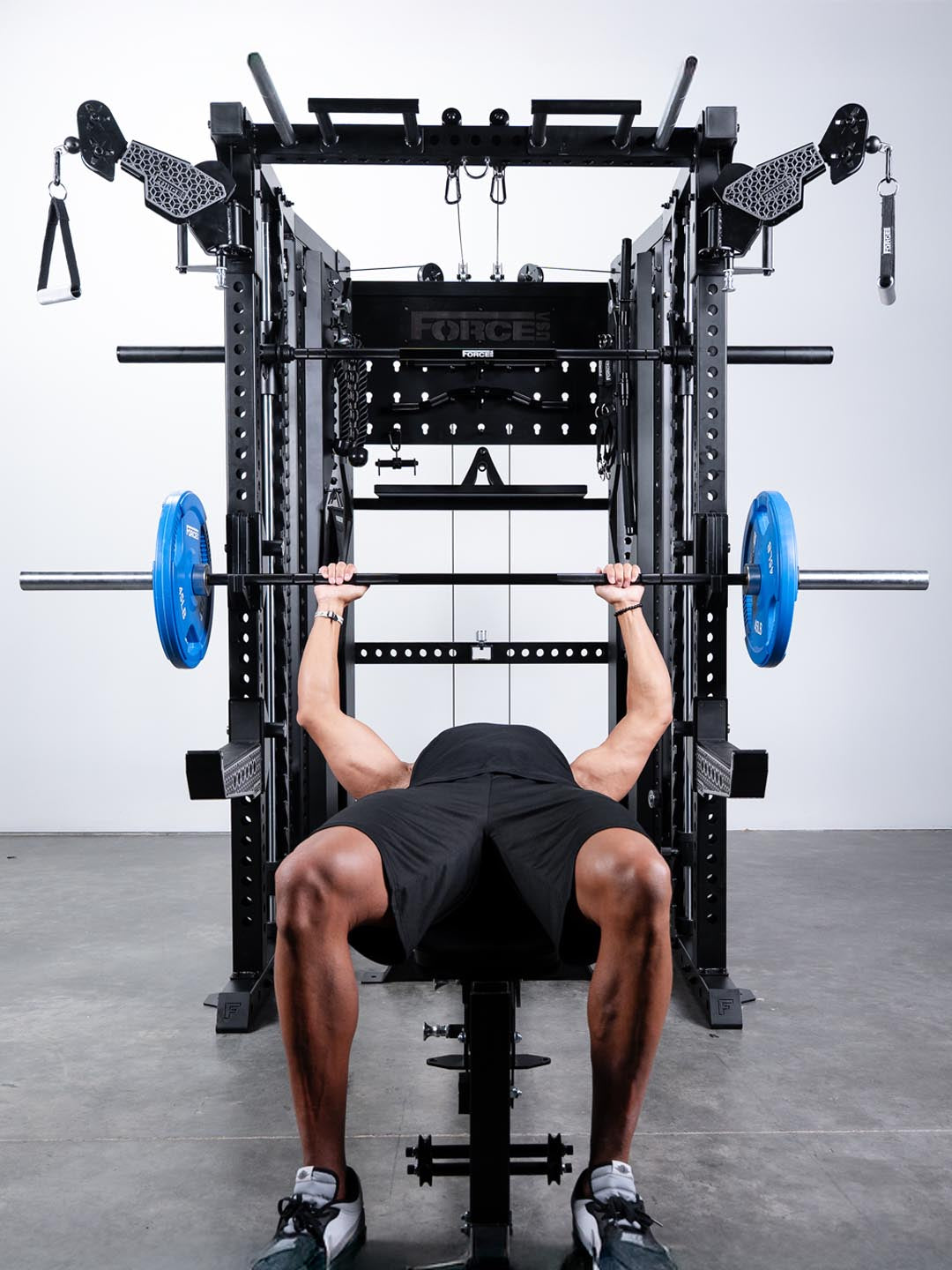

Single-track Smith machine

Train heavy. Train safe.

Single Track architecture combines the guide rod, linear bearings and safety lock into one column wrapped in 5-gauge steel. That is where the stability and structural integrity come from.

The lowest starting position in the industry, so you get a full deadlift range of motion.
Professional-standard knurling, precision grip lines and spinning sleeves give it the feel of a true barbell.
16kg (35lb) integrated bar weight.

Upgradeable weight stacks

Up to 272kg of cable resistance

The C20 starts with dual 90.7kg (200lb) stacks and upgrades to 113kg (250lb) or 136kg (300lb) per side.

Run both 136kg stacks through the 1:1 ratio system and you have 272kg (600lb) of resistance — the most available in the category today.

A built-in 2.3kg (5lb) micro-adjustment plate lets you add weight in smaller increments, so you are always making progress.

Over 20 attachments included

All pro-grade, all in the box

Over 20 pro-grade attachments come with the C20 — where most of the competition charges you per attachment.

Aluminium cable attachments for quicker pin changes, a lighter grip and corrosion-proof durability.
High-grade steel power rack attachments for strength and versatility.

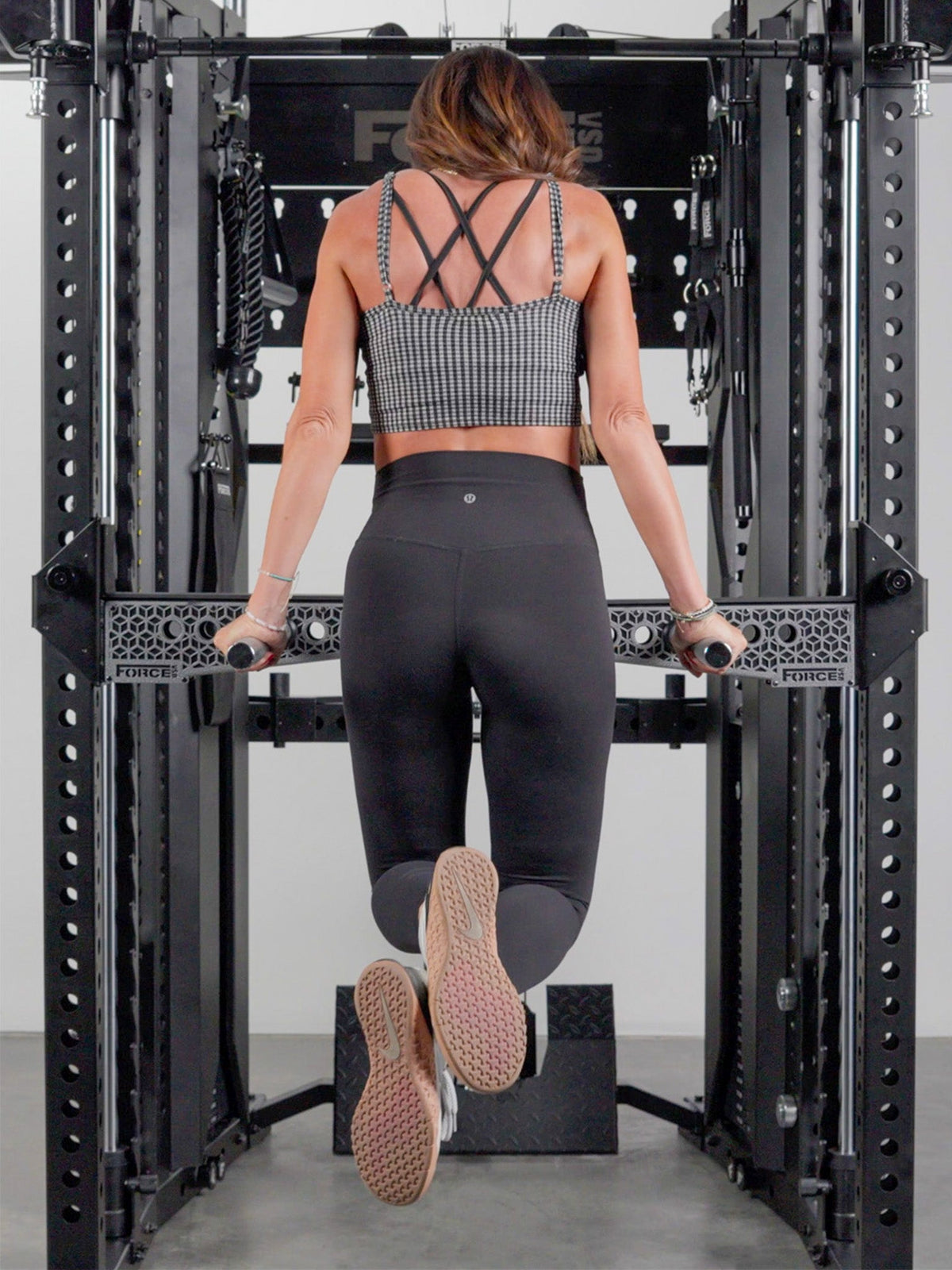

Quick-Lock J-cups and spotter arms snap into place without pins or hardware, sit flush against the uprights and hold position no matter how hard you lift.
UHMW inserts on the J-cups and spotter arms preserve the barbell's knurling.

Integrated storage

Everything has a home

A 47-slot pegboard, recessed accessory shelf, 8 Olympic plate horns and a UHMW-protected barbell holder are built into the frame, with 12 pegboard pegs included.

25mm holes across the entire frame let you position storage anywhere on the uprights.

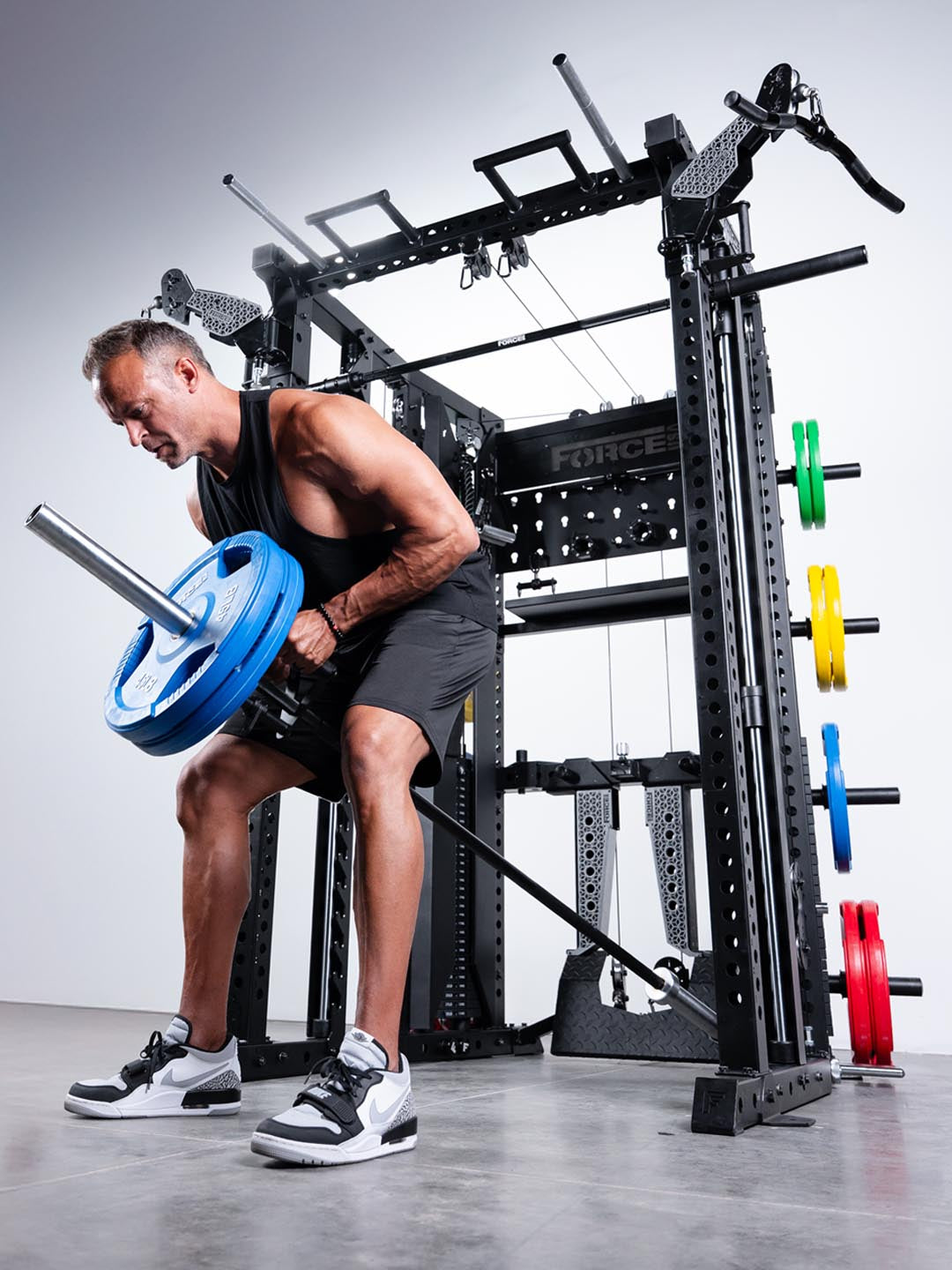

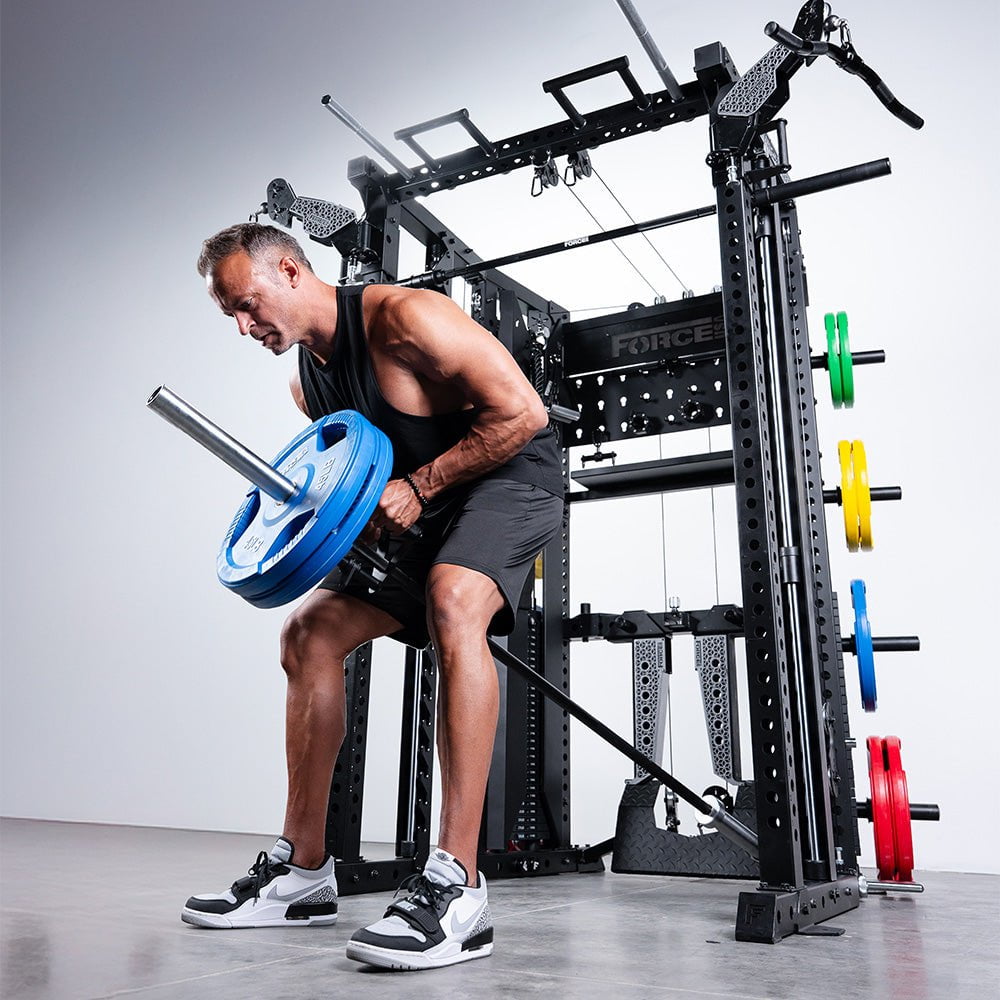

The magnetic landmine parks flush against the frame when it is not in use, out of the way and ready when you need it.
Magnetic barbell safeties cling anywhere on the rack with no pins — park them between sets and pull them exactly where you need them in seconds.

About this product

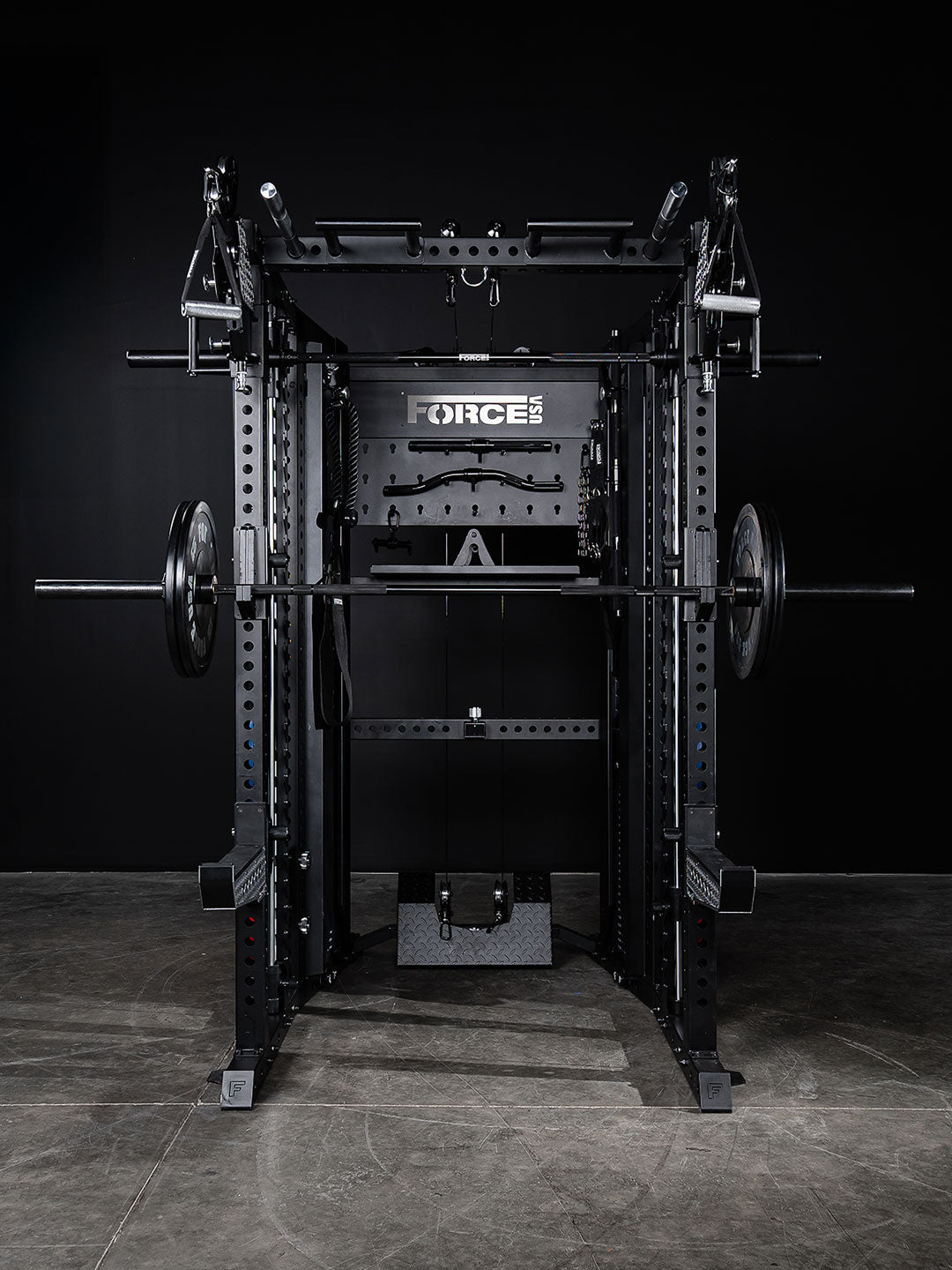

The C20 Cornerstone is Force USA's full-commercial flagship — a complete strength facility built into one frame. Lat pulldown, low row, sliding bench and functional trainer stations all run off integrated weight stacks, so a single unit covers what would normally take four machines and a rack.

Full commercial rated — built for gyms, studios and PT facilities, not just home use
Cable ratios — 2:1 on the uprights and lat pulldown station (1:1 when combined), 1:1 on the low row station and sliding bench
90.7kg (200lb) weight stacks, upgradeable to 113kg (250lb) or 136kg (300lb)
3x3 inch, 11-gauge uprights with 1 inch holes at 2 inch spacing — compatible with the wider 3x3 accessory ecosystem
585kg product weight — no bolting down required
Attachments included: dip handlebars, revolving short EZ curl bar and revolving short bar, with integrated storage on the frame

Dimensions
Exterior: 195.6cm W x 167.6cm D x 223.5cm H
Interior: 109.2cm W x 119.4cm D x 205.7cm H
With the sliding bench fitted: 195.6cm W x 325.1cm D
Minimum ceiling height for a full pull-up: 246cm

Delivery & assembly: bulky freight item at 645kg — delivered kerbside. Assembly is not included. Please check access and ceiling height before ordering.

Bulky item — freight delivery

This item is too large for standard courier and ships by truck freight. Delivery is charged separately and is not covered by our free shipping over $70.

Freight quoted at checkoutCalculated on weight and delivery location, shown before you pay.
1–2 weeks by truckLonger than our standard courier times. Rural addresses take longer again.
Kerbside deliveryDelivered to your address at ground level. Please arrange help to move and position it.
Booked manuallyTracking numbers aren't always available — contact us with your order number for an update.

Read our full delivery policy

Need help putting this together? Get in touch with us — Contact us

Usage	Full commercial
Cable ratios	2:1 on uprights and lat pulldown station (1:1 when combined); 1:1 on low row station and sliding bench
Weight stacks	90.7kg (200lb) — upgradeable to 113kg (250lb) or 136kg (300lb)
Uprights	3x3 inch, 11-gauge steel with 1 inch holes at 2 inch spacing
Exterior dimensions	195.6cm W x 167.6cm D x 223.5cm H (77in x 66in x 88in)
Interior dimensions	109.2cm W x 119.4cm D x 205.7cm H (43in x 47in x 81in)
Footprint with sliding bench	195.6cm W x 325.1cm D x 223.5cm H (77in x 128in x 88in)
Minimum ceiling height	246cm (97in) for a full pull-up
Product weight	585kg (1,290lb)
Shipping weight	645kg
Attachments included	Dip handlebars (pair), aluminium revolving short EZ curl bar, aluminium revolving short bar

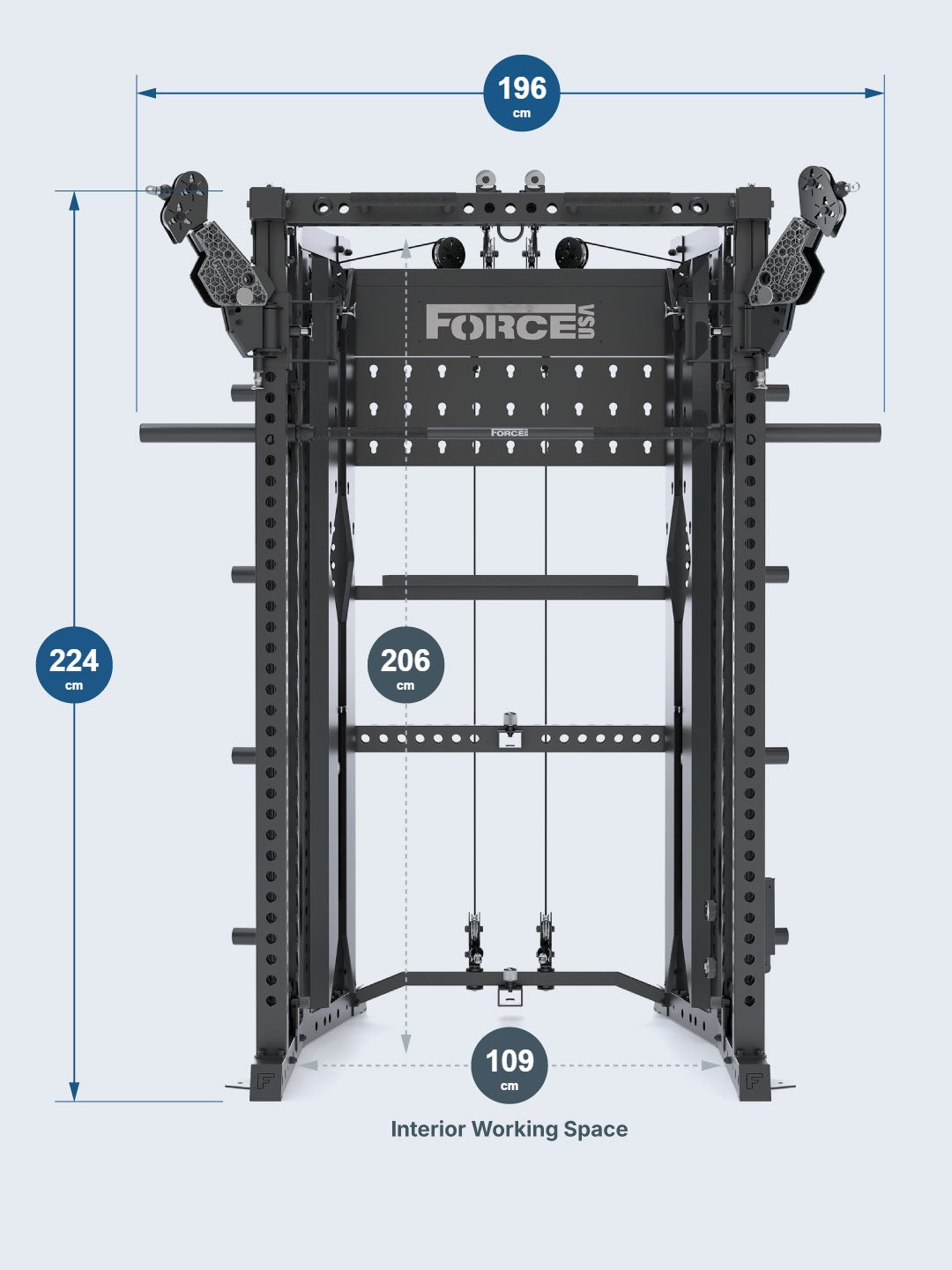

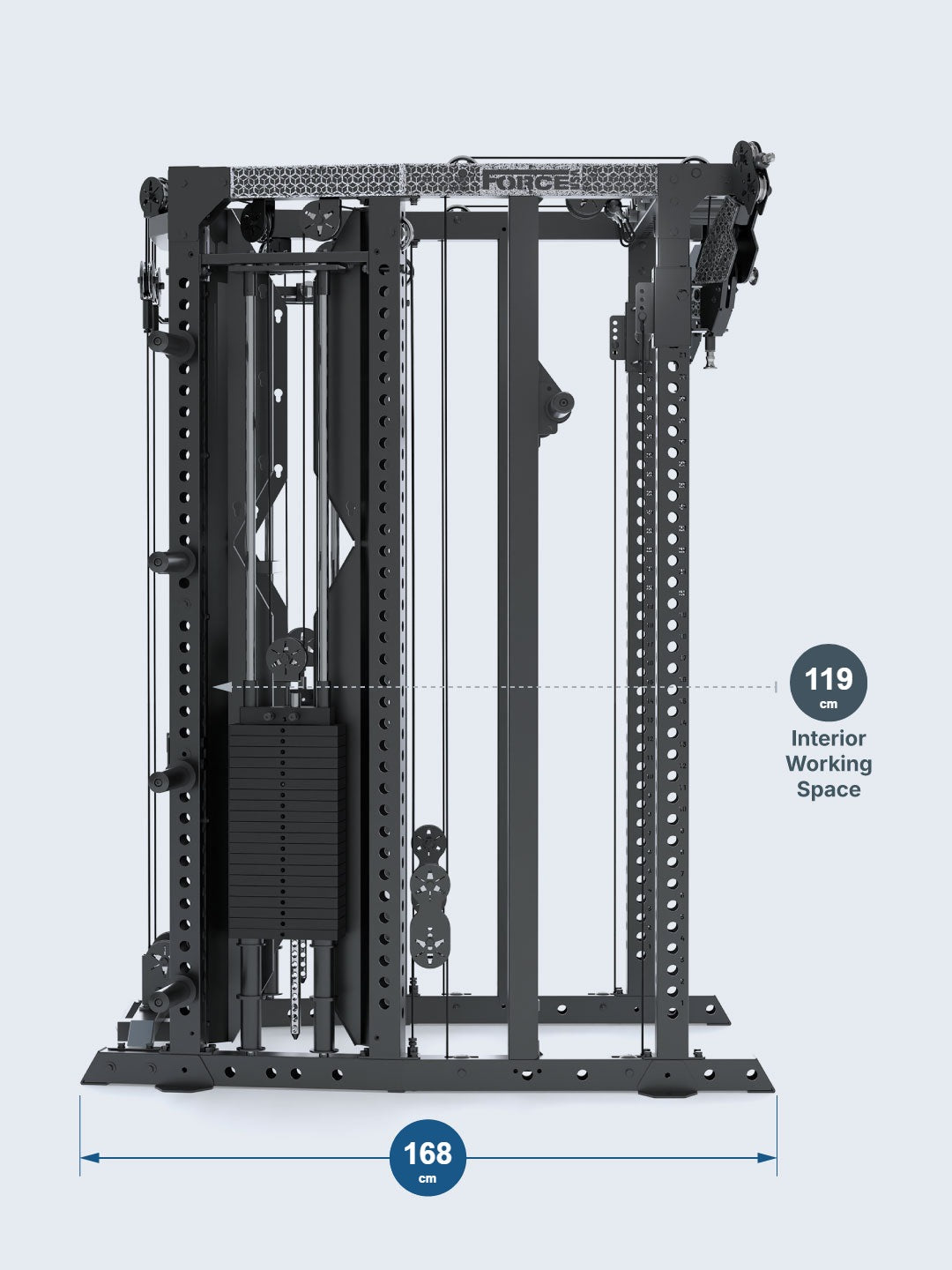

Force USA C20 Cornerstone All-In-One Trainer dimensions

The C20 arrives with a full commercial attachment set and integrated storage so everything has a home on the frame.

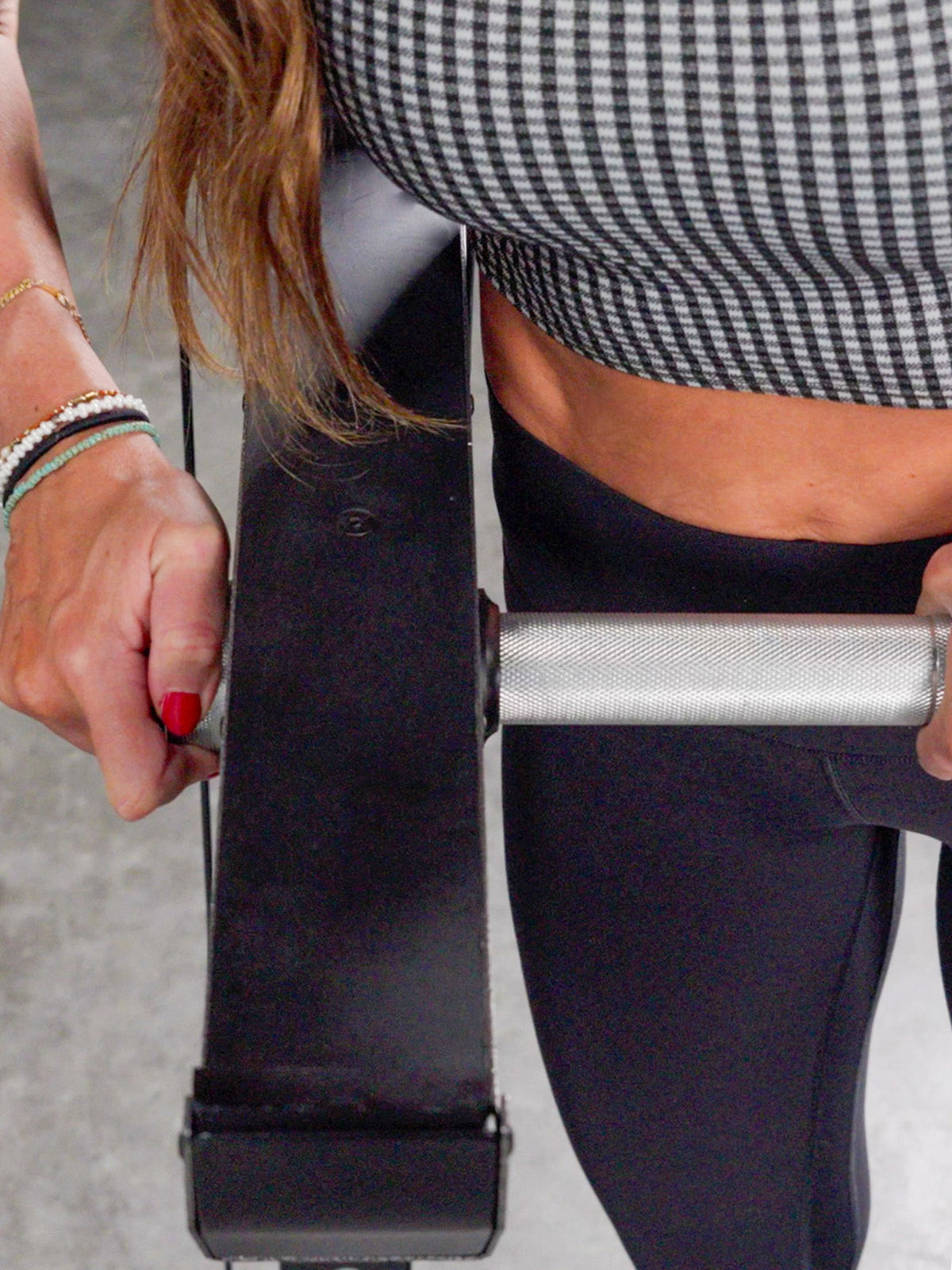

Dip handlebars (pair)
Aluminium revolving short EZ curl bar — lighter in the hand and corrosion-proof
Aluminium revolving short bar
Dual integrated weight stacks, 90.7kg (200lb) each
Integrated attachment storage built into the frame
3x3 inch, 11-gauge uprights — compatible with the wider 3x3 accessory ecosystem

Force USA C20 included attachments

Not included: weight plates, dumbbells, a bench or a separate Olympic barbell. The sliding bench is a separate purchase. Photos on this page show the C20 set up with plates, a bench and accessories that are sold separately.

What ceiling height do I need?

The C20 stands 223.5cm tall, and Force USA specify a minimum ceiling height of 246cm (97 inches) to do a full pull-up with your head clearing the bar. A standard NZ ceiling is 240cm, so the machine fits but pull-ups will be tight. Measure before you order, and remember it has to be assembled in its final position. If you are adding the sliding bench, allow 325cm of depth rather than 167.6cm.

How is it delivered, and what does freight cost?

The C20 ships at 645kg on a pallet by truck freight rather than courier, so it is not covered by our free shipping over $70. Freight is calculated on weight and delivery address and shown at checkout before you pay. Allow 1 to 2 weeks, and longer again for rural addresses. Delivery is kerbside, so please arrange help to move and position it.

Do I have to assemble it myself?

Yes, assembly is not included. Owners report anywhere from 8 hours to three half-days, and most recommend a second set of hands. Several also note the printed manual is hard to follow and that watching the assembly video first saves a lot of time. Build it in its final position, because it is not practical to move once assembled.

Can I add more weight later?

The C20 comes with 90.7kg (200lb) stacks, upgradeable to 113kg (250lb) or 136kg (300lb). If you think you will want the extra weight, order the upgrade at the same time as the machine. Owners consistently say fitting additional stacks after it is built is far more work than doing it all in one go.

Does it need to be bolted to the floor?

No. At 585kg net the C20 is stable freestanding and does not need bolting down. It does need a level floor and enough clearance around it to swing the functional trainer arms through their full range.

What is not included?

The C20 comes with dual integrated weight stacks, over 20 pro-grade attachments and an integrated 16kg Smith machine bar. The Sliding Bench is not included — it is a separate purchase, even though the feature videos show it working with the machine. Loose weight plates, dumbbells and a separate Olympic barbell are also sold separately. If you are adding the Sliding Bench, allow 325cm of depth rather than 167.6cm.
